Below is a listing of general specifications for the 1986 Corvette including engine specifications, dimensions, and more.

Dimensions
  Coupe Convert.
Wheelbase (in.) 96.2
Track Frt/Rear (in) 59.6 / 60.4
Length (in.) 176.5
Width (in.) 71.0
Height (in.) 46.7 46.6
Ground Clearance (in.) (minimum) 4.7
Curb Weight (lbs) 3280 3266
Weight/Power (lbs/bhp) 15.1 14.4
Coefficient of Drag 0.33 NA
Weight Dist. F/R (%) 51/49 50.2/49.8
Coolant Capacity (qt.) 14.6
Fuel Capacity (gal.) 20.0
Oil Capacity (qt.) 4.5

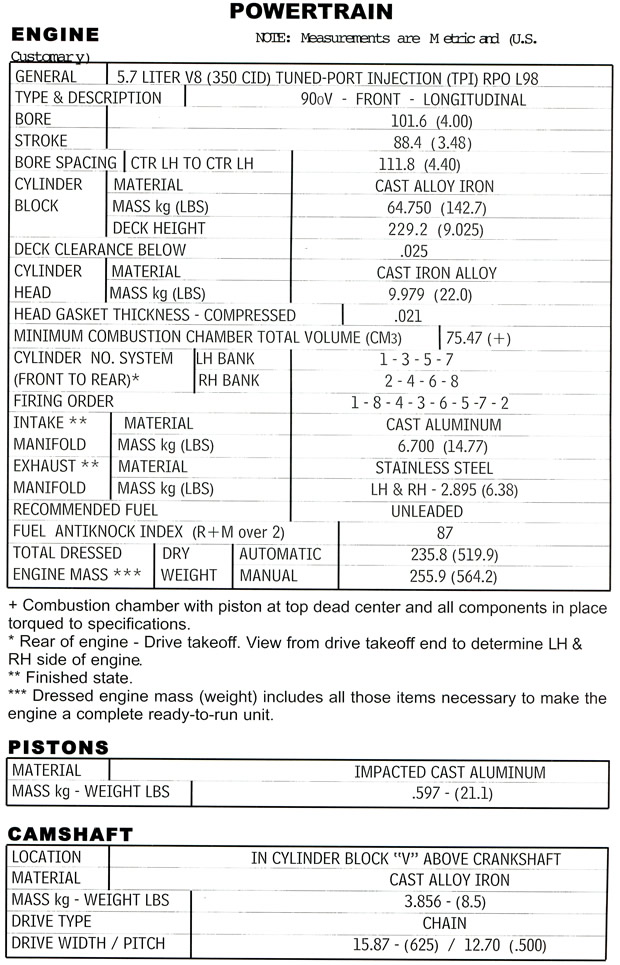

Engine Specifications
  L98
Type Overhead valve, pushrod V8, 2 valves/cylinder, cast iron block, aluminum heads
Bore 4.00 in
Stroke 3.48 in
Displacement 5.7L / 350 ci.
Compression Ratio 9.5:1
Horsepower 230 hp @ 4000 rpm (235 hp w/ alum. cyl. heads)
Torque 330 lb-ft @ 3200 rpm
Redline (RPM) 5,500
Induction System Bosch Multi-Point Fuel Injection

Miscellaneous
Brakes
Type ABS Power-assist vented discs
Front Rotors (diam) 11.5 in.
Rear Rotors (diam) 11.5 in.
Wheels and Tires
Wheel Size (Front) 16 x 8.5 in. (RPO Z51: 16 x 9.5 in.)
Wheel Size (Rear) 16 x 8.5 in. (RPO Z51: 16 x 9.5 in.)
Wheel Type 5-bolt, cast alloy
Tire Make/Size Goodyear Eagle VR50, P255/50VR-16

Transmission
  Automatic Manual
Type 4-Speed 4-Spd. Doug Nash w/ OD
Gear Ratios
1st 3.06 2.88 (1.93 OD)
2nd 1.63 1.91 (1.28 OD)
3rd 1.00 1.33 (0.89 OD)
4th 0.70 1.00 (0.67 OD)
Reverse NA NA
Axle Ratio 2.73 (RPO G92: 3.07) 3.07
