2017 - 2019 Corvette: Service Bulletin: Information for Corvette Aero Packages
Estimated Reading Time: 3 Minutes#16-NA-330: Information for Corvette Aero Packages - (Mar 5, 2018)
| Subject: | Information for Corvette Aero Packages |
|
Brand: |
Model: |
Model Year: |
VIN: |
Engine: |
Transmission: | ||
|---|---|---|---|---|---|---|---|
|
from |
to |
from |
to | ||||
|
Chevrolet |
Corvette |
2017 |
2019 |
||||
|
Involved Region or Country |
North America and N.A. Export Regions |
|
Additional Options (RPO) |
Equipped with Performance Package RPOs CFV, CFZ, Z07, ZLZ or ZTK |
|
Condition |
This communication is to inform the pre-delivery technician which aero components are to be installed on the 2017 - 2019 Corvette during the pre-delivery inspection (PDI) process. |
|
Cause |
This may be due to the various ground effect parts that make up the aero packages. |
- Correction
-

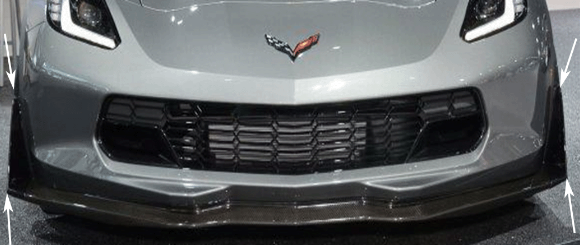

Please confirm the correct aero components are installed during the PDI process. Use the photos and tables below to confirm the correct aero parts were shipped and installed on the vehicle prior to delivery.
Important: The tall end caps and clear bridge are for track use ONLY. DO NOT install during PDI.

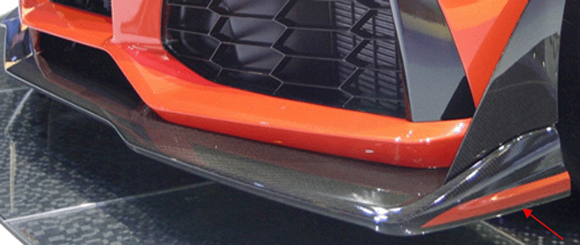

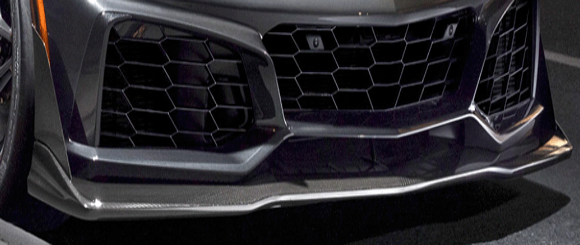

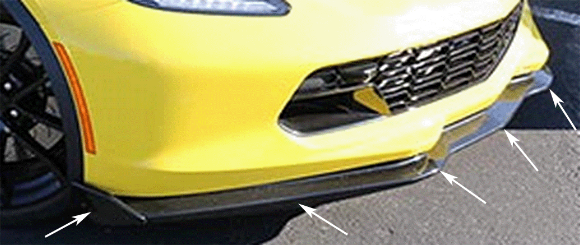

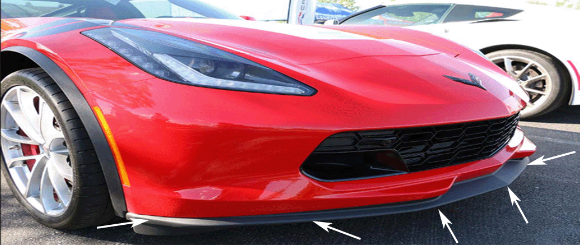

SPLITTER
Small
Large
ZR1
ZR1 Orange

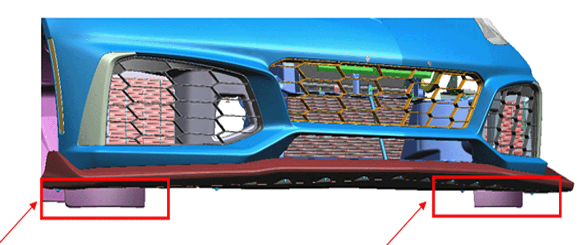

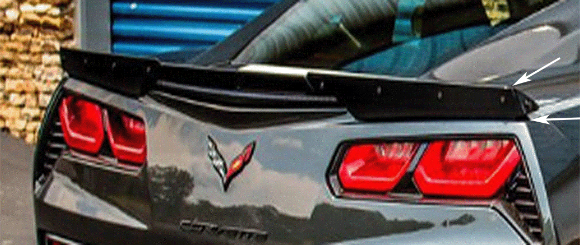

END CAPS
Short
Tall
ZR1 Coupe

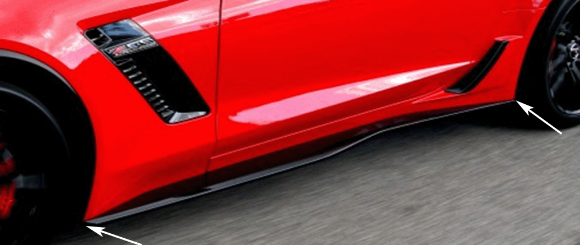

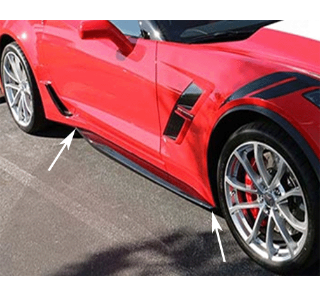

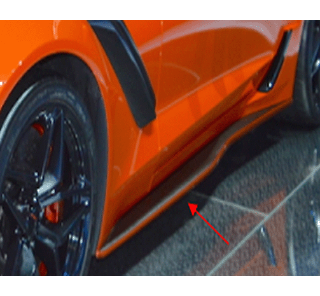

ROCKERS
Short
Long
Long Orange

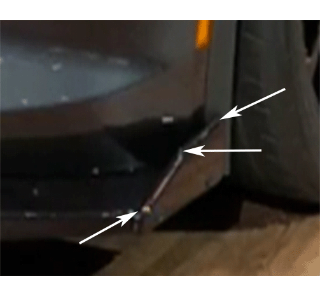

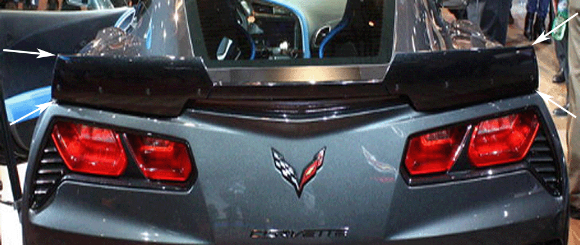

WICKERS
Short
Tall

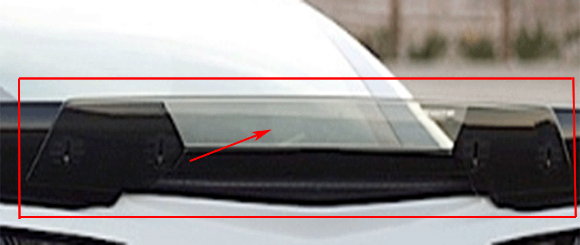

CLEAR BRIDGE

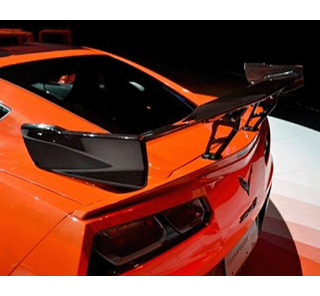

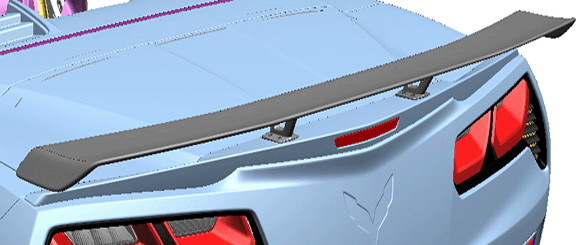

WINGS
Track
Street

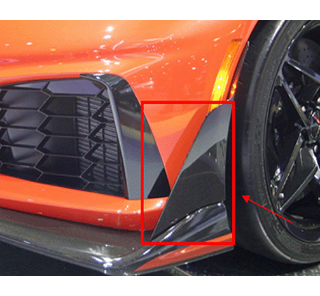

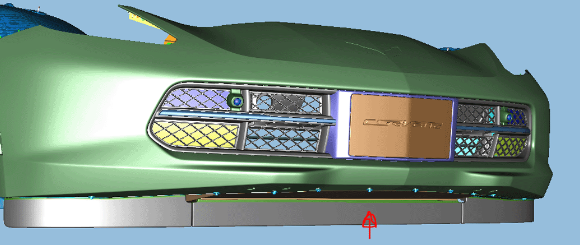

FRONT CENTER DEFLECTOR
FRONT OUTER DEFLECTOR
|
STINGRAY | ||||||
|---|---|---|---|---|---|---|
|
SPLITTER |
END CAPS |
ROCKERS |
WICKERS |
CLEAR BRIDGE |
FRONT CENTER DEFLECTOR |
|
|
No CFV/Z |
None |
None |
None |
None |
None |
Yes |
|
With CFV/Z and/or Z51 |
Large |
Small |
Long |
Low |
Yes |
No |
|
With Z07 |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
|
Z51 | ||||||
|---|---|---|---|---|---|---|
|
SPLITTER |
END CAPS |
ROCKERS |
WICKERS |
CLEAR BRIDGE |
FRONT CENTER DEFLECTOR |
|
|
No CFV/Z |
None |
None |
None |
None |
None |
No |
|
With CFV/Z and/or Z51 |
Large |
Small |
Long |
Low |
Yes |
No |
|
With Z07 |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
|
GS | ||||||
|---|---|---|---|---|---|---|
|
SPLITTER |
END CAPS |
ROCKERS |
WICKERS |
CLEAR BRIDGE |
FRONT CENTER DEFLECTOR |
|
|
No CFV/Z |
Small |
None |
Short |
Low |
None |
Yes |
|
With CFV/Z and/or Z51 |
Large |
Small |
Long |
High |
None |
No |
|
With Z07 |
Available w or w/o CFV/Z, no aero changes driven by Z07 |
|||||
|
MY18 Carbon Edition Z30 |
Large |
Small |
Long |
Integrated |
None |
No |
|
MY18 Carbon Edition Z30 & Z07 |
Large |
Small |
Long |
Integrated |
None |
No |
|
Z06 | ||||||
|---|---|---|---|---|---|---|
|
SPLITTER |
END CAPS |
ROCKERS |
WICKERS |
CLEAR BRIDGE |
FRONT CENTER DEFLECTOR |
|
|
No CFV/Z |
Small |
None |
Short |
Short |
None |
Yes |
|
With CFV/Z and/or Z51 |
Large |
Small |
Long |
Tall |
None |
No |
|
With Z07 |
Large |
Large |
Long |
Tall |
Yes |
No |
|
MY18 Carbon Edition Z30 |
Large |
Small |
Long |
Integrated |
None |
No |
|
MY18 Carbon Edition Z30 & Z07 |
Large |
Large |
Long |
Integrated |
Yes |
No |
|
ZR1 | |||||||
|---|---|---|---|---|---|---|---|
|
SPLITTER |
END CAPS |
ROCKERS |
STREET WING |
TRACK WING |
FRONT OUTER DEFLECTOR |
FRONT CENTER DEFLECTOR |
|
|
No ZTK |
ZR1 |
No |
Long |
Yes |
No |
Yes |
N/A |
|
With ZTK |
ZR1 |
ZR1 Coupe ONLY |
Long |
No |
Yes |
No |
N/A |
|
ZLZ without ZTK |
ZR1 Orange |
No |
Long Orange |
Yes |
No |
Yes |
N/A |
|
ZLZ with ZTK |
ZR1 Orange |
ZR1 Coupe ONLY |
Long Orange |
No |
Yes |
No |
N/A |
|
Version |
5 |
|
Modified |
