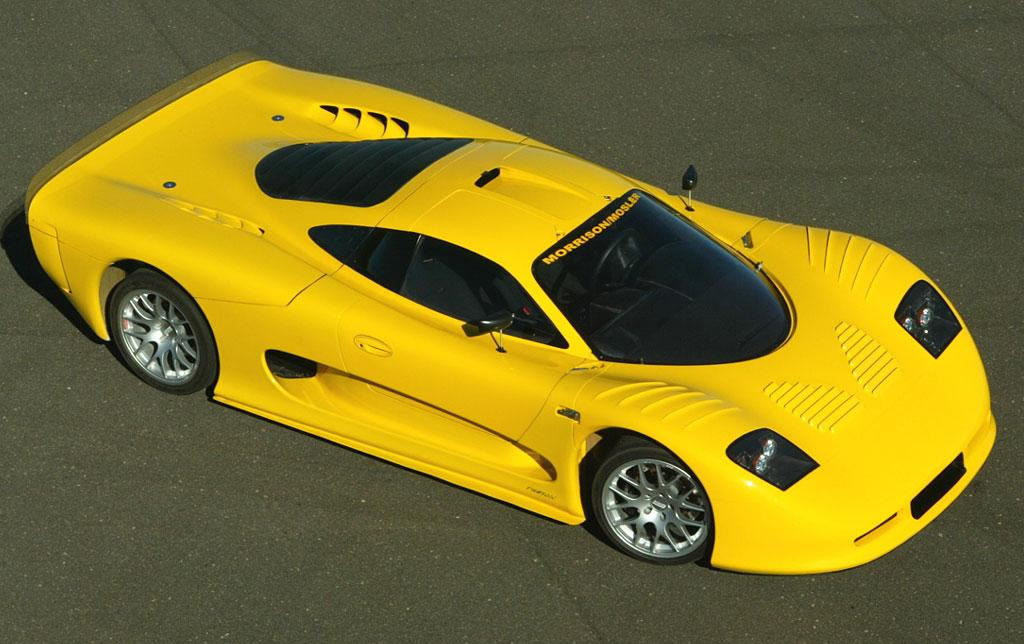

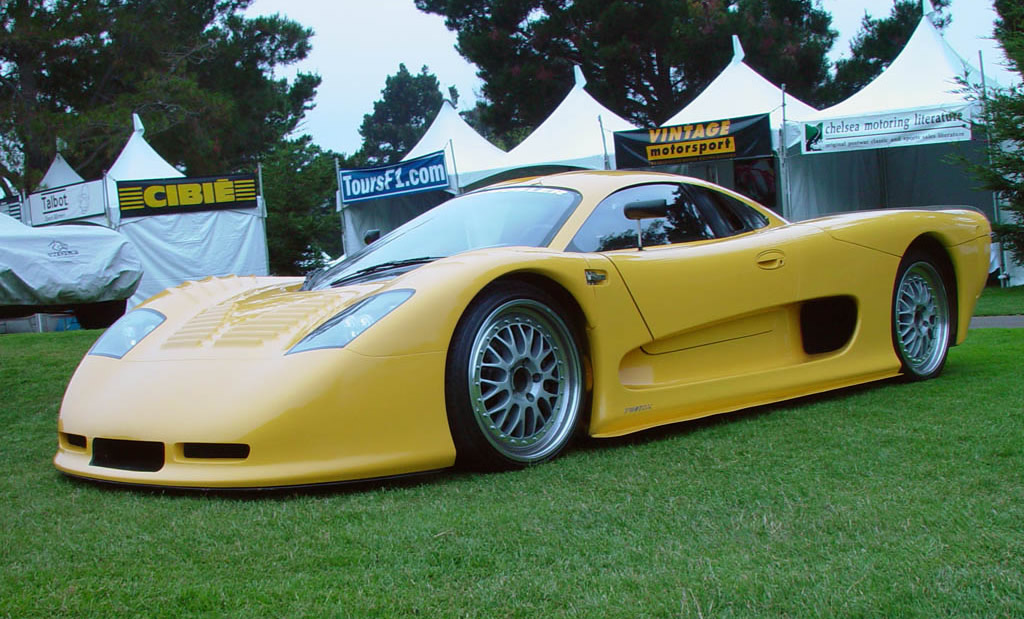

2002 Mosler MT900 Photon
The following data is from Motor Trend, June 2003, Vol. 55, No. 6, pg. 62-98.
| Dimensions | |
|---|---|
| Wheelbase (in.): | 109.0 |
| Length (in.): | 189.0 |
| Width (in.): | 79.0 |
| Track, f/r (in.): | 66.0 / 64.8 |
| Height (in): | 42.3 |
| Curb Weight (lbs): | 2,144 |
| Weight Dist. f/r (%): | 39 / 61 |
| Fuel Capacity (gal): | 26.4 |
| Powertrain / Chassis | |
| Drivetrain Layout: | Mid-engine, RWD |
| Engine Type: | 90o V-8, aluminum block and heads |
| Valve Gear: | OHV, 2 valves/cyl. |
| Bore x Stroke, (in/mm) | 3.90 x 3.62 / 99.0 x 92.0 |
| Displacement (ci/cc): | 345.7 / 5665 |
| Compression Ratio: | 10.0:1 |
| Max Horsepower @ rpm: | 435 @ 6000 |
| Max Torque @ rpm: | 400 @ 6000 |
| Specific Output, hp/liter: | 76.8 |
| Power to Weight, (lb/hp): | 4.9 |
| Max Engine Speed, (rpm): | 6,500 |
| Transmission: | 6-speed sequential manual |
| Axle / Final Drive Ratio: | 3.10:1 / 2.66:1 |
| Suspension, Front; Rear: | Upper and lower control arms, coil springs, anti-roll bar; upper and lower control arms, coil springs, anti-roll bar |
| Brakes Front; Rear: | 13.0-in vented discs 13.0-in vented discs |
| Wheels, Front; Rear: | 18 x 10.0; 18 x 11.0 cast aluminum |
| Tires, Front; Rear: | 265/35ZR18; 305/30ZR18 Hoosier R3503 |
 |
 |
| Performance | |
| 0-30 mph (sec) | NA |
| 0-40 mph (sec) | NA |
| 0-50 mph (sec) | NA |
| 0-60 mph (sec) | 3.13 |
| 0-70 mph (sec) | NA |
| 0-80 mph (sec) | NA |
| 0-90 mph (sec) | NA |
| 0-100 mph (sec) | NA |
| 1/4 Mile (sec/mph) | 11.02 / 126.88 |
| 0-100-0 (mph, sec) | 10.98 |
| Top Speed (mph) | 165 |
| Braking (ft.) | 60-0 mph, ft: 100 100-0 mph, ft: 275 |
| 600-ft. Slalom, (mph) | 74.7 |
| Consumer Info. | |
| Base Price: | $210,000 |
| Price as Tested: | $210,000 |
| EPA mpg, city/hwy: | 17/27 |
